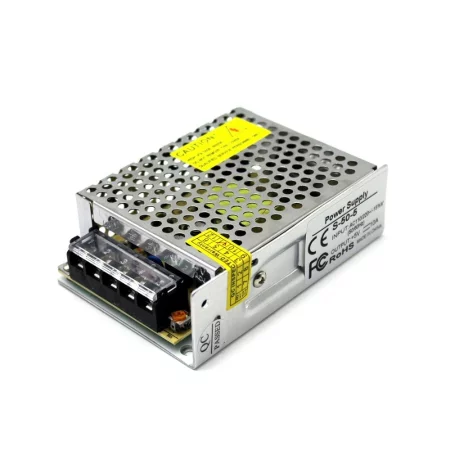

Power supply 5V, 10A - 50W

Introduction

This manual provides general guidelines for the installation and maintenance of switched-mode power supplies. It is important to follow all safety instructions and, if necessary, consult specific instructions with the seller.

1. Safety Guidelines

• Professional Installation – The installation and maintenance of the power supply should be performed by qualified personnel with appropriate knowledge and experience in the field of electrical engineering.
• Disconnect from the Network – Before starting any work on the power supply, always disconnect the device from the electrical network and ensure that it cannot be inadvertently connected.
• Protective Equipment – When handling the power supply, use appropriate personal protective equipment, such as insulating gloves and safety glasses.
• Grounding – Ensure that the power supply is properly grounded to guarantee the safety and proper functioning of the device.

2. Installation of the Power Supply

• Placement – Install the power supply in a dry, well-ventilated area protected from direct sunlight, humidity, and extreme temperatures.
• Mounting – Secure the power supply to a solid surface using suitable mounting hardware to ensure stability and minimize vibrations.
• Cooling Space – Ensure there is sufficient space around the power supply for heat dissipation and proper ventilation to prevent overheating of the device.

3. Electrical Connection

• Input Connection – Connect the power supply to the electrical network according to the following designations:
  • L (Live): Phase conductor (usually brown or black)
  • N (Neutral): Neutral conductor (usually blue)
  • Ground (Grounding symbol): Protective conductor (usually green-yellow)
• Output Connection – The power supply may have one or more output terminals labeled as V+ and V-. If multiple output terminals are available and full power is required, these outputs must be connected in parallel to ensure an even current distribution.

4. Maintenance of the Power Supply

• Regular Inspections – Perform regular visual inspections of the power supply to detect any signs of damage, such as overheating, corrosion, or loose connections.
• Cleaning – Keep the power supply clean and free of dust. Always disconnect the device from the network before cleaning. Use a dry or slightly damp cloth for cleaning. Do not use aggressive cleaning agents.
• Ventilation Check – Ensure that the ventilation openings are not blocked and that any fans (if present) are functioning properly.
• Functionality Testing – Regularly test the output voltage and current to ensure the proper functioning of the power supply.

5. Warnings

• Risk of Electric Shock – Power supplies operate with high voltage, which can cause serious injury or death. Always adhere to safety instructions and procedures.
• Repairs – Any repairs should only be performed by qualified personnel. Do not attempt repairs without the necessary qualifications.
• Replacement of Components – When replacing components, only use original spare parts recommended by the manufacturer.

By following the above guidelines, you ensure the safe and reliable operation of the switched-mode power supply.
