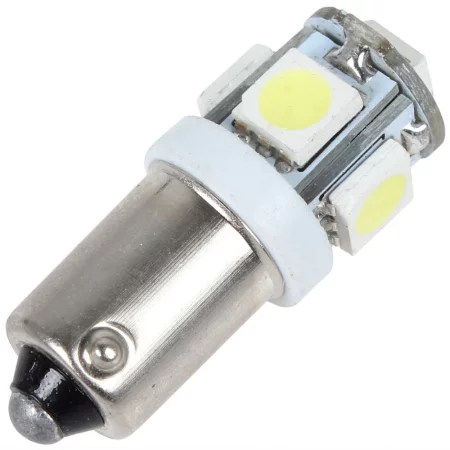

BAX9S, LED 5x 5050 SMD - White

The LED bulb with BAX9S base is designed for lighting applications requiring a compact design and white light color. The design with multiple SMD LED chips ensures multi-directional emission, which is suitable for use in instrument, signaling or auxiliary lighting. The product is available in 6 V and 12 V DC versions.

Technical specifications

• Socket: BAX9S
• Light color: white
• LED type: 5050 SMD
• Number of LEDs: 5
• Supply voltage: 6 V DC or 12 V DC depending on the selected variant
• Beam angle: 360°
• Protection: IP22
• Lifespan: 50,000 hours

Functions and features

• Equipped with five SMD LED chips.
• Version with BAX9S base for installation in a corresponding socket.
• White light for lighting and signaling use.
• Design supporting a wide beam angle.
• Available in two voltage options for different DC systems.

Ideal for

• Luminaires and signaling points with BAX9S base.
• Low voltage applications at 6 V DC.
• Low voltage applications at 12 V DC.
• Auxiliary, instrument and indicator lighting.

Package contents

• 1 pc. BAX9S LED bulb, 6 or 12 V depending on the selected variant

Why choose this product?

• The clearly designated BAX9S socket makes it easy to select a compatible replacement power supply.
• The choice between 6 V and 12 V allows use in corresponding electrical systems.
• Multidirectional radiation is suitable where light distribution in multiple directions is required.
• The LED design with 5050 SMD chips offers a filament-free design.

Installation and operating instructions

• Before installation, verify the correct BAX9S socket type and select the corresponding voltage variant 6 V or 12 V DC.
• Only install the bulb in a socket designed for the given type of socket.
• Disconnect power before replacing.
• Do not use the bulb in a circuit with a voltage other than that for which the selected variant is intended.

Safety notice

• An incorrectly selected voltage option can lead to damage to the bulb or electrical installation.
• Avoid shorting the contacts during assembly.
• Only use the product in an environment that meets IP22 protection.
• Do not install or use a damaged product.
