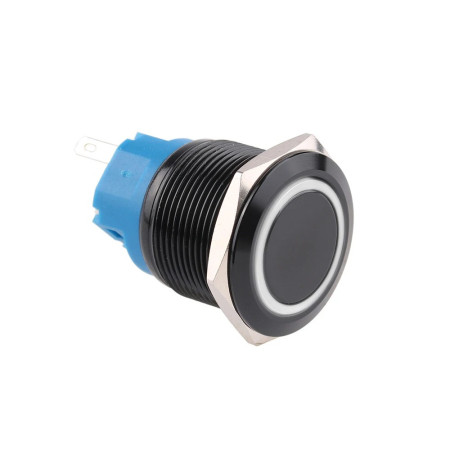

IP65 Black Metal Switch with Latch, 25mm, Backlit, 12-230V
zoom_out_map
chevron_left chevron_right

Metal switch with latch, black, diameter 25mm, IP65

Backlit metal switch with latching (remains closed when pressed), for a hole diameter of 22mm with an operating voltage of 12-24V DC, 110-230V AC.

6.66 €

6.66 € excl. VAT

6.66207 Tax excluded

i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Voltage: 12-24V, 110-230V
Max current: 5A
Mounting diameter: 22mm
Switch diameter: 25mm
Protection: IP65
Size: 25x25x36 mm

CONNECTION

BACKLIGHT ALWAYS ACTIVE, Contact - NC
BACKLIGHT STILL ACTIVE, Contact - NO
BACKLIGHT INACTIVE, ACTIVE AFTER PRESSING, Contact - NO
CONSTANT BACKLIGHT, INACTIVE AFTER PRESSING, Contact - NC
OEM
AM6598-BI-12-24-DC
85365080
Power consumption
0.2 W
Color
Black
Housing material
Stainless steel
Waterproof grade
IP65
Mounting hole
22 mm
Max. switching current
5 A
Max. switching voltage
265V AC /30 V DC
Locking
Yes
IC coverage
IK10

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
