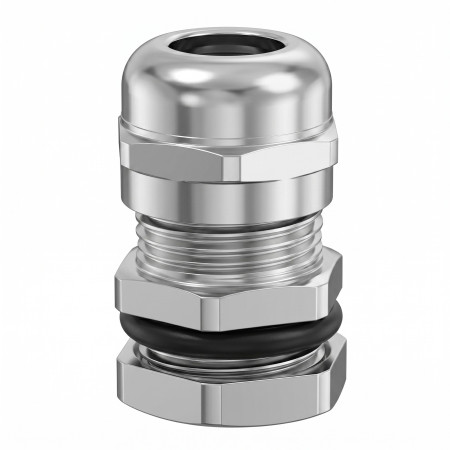

Metal cable gland IP68, M

1.27 €

1.27 € Tax excluded

1.27 € without VAT i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

The cable glands are fully sealed and IP68 rated. This means that the metal glands are dust-tight and protected against the continuous effects of immersion in water. CGM-M cable glands are ideal for harsher environments and outdoor applications.

Excellent water resistance
Fully sealed against dust
High quality brass with nickel plating
NBR and polyamide retaining ring
For use with unarmored cable

Material: brass
Surface finish: chrome nickel

ThreadCable diameter (mm)Thread diameterMounting holeThread lengthHexagon size
(key)
M8*1.03-3.8
7.785.5
14
M8*1.25
3-3.8
7.7
8
5.5
14
M10*1.5
3-6.5
9.7
10
6.5
14
M12*1.5
3-6.5
11.7
12
6
14
M14*1.5
4-8
13
.7
14
6
16
M16*1.5
4-8
15.7
16
7
18
M18*1.5
6-10
17.7
18
7
20
M20*1.5
6-12
19.7
20
8
22
M22*1.5
10-14
21.7
22
8
24
M24*1.5
10-14
23.7
24
8
27
M25*1.5-S
10-14
24.7
25
9
27
M25*1.5-B
8-16
24.7
25
9
27
M27*1.5
13-18
26.7
27
9
30
M28*1.5
13-18
27.7
28
9
30
M30*1.5
13-18
29.7
30
9
32
M32*1.5
15-22
31.7
32
9
34
M33*1.5
15-22
32.7
33
10
36
M36*1.5
18-25
35.7
36
10
40
M37*1.5
18-25
36.7
37
10
40
M40*1.5
18-25
39.7
40
11
40/45
M40*1.5
22-28
39.7
40
11
45
M42*1.5
22-28
41.7
42
11
45
M47*1.5
25-32
46.7
47
11
50
M48*1.5
25-32
47.7
48
11
52
M50*1.5
32-38
49.7
50
11
55
M54*1.5
32-38
53.7
54
12
58
M60*1.5
37-44
59.7
60
12
64
M63*1.5
37-44
62.7
63
12
68
M64*1.5
37-44
63.7
64
12
68
M72*1.5
42-52
71.7
72
15
78
M75*1.5
42-52
74.7
75
15
78
M80*1.5
55-60
79.7
80
17
88
M88*1.5
65-70
87.7
88
18
98
M100*1.5
75-84
99.7
100
22
110
OEM
AM7953-8-10
Waterproof grade
IP68
Operating temperature
-40°C - +100 °C

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
