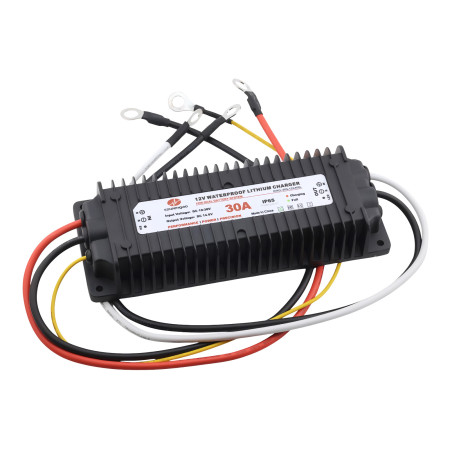

DC/DC lithium battery charger 14.6V, 30A, 400W, IP68

Product overview
WG-12C400L is a high-performance DC-DC charger specially designed for charging lithium iron phosphate (LiFePO₄) and lithium manganese (LiMn₂O₄) batteries. Thanks to a wide input voltage range of 10-36 VDC and a power of up to 400 W, it provides stable and efficient charging, especially in field applications where standard mains power is not available. Intelligent multi-stage charging in constant current (CC) mode until the target voltage of 14.6V is reached and the current is then automatically reduced to 10%, ensuring safe and gentle battery care, without the risk of overcharging or damage.

Areas of use:
• Solar systems: Charging auxiliary batteries in off-grid applications, island systems
• Mobile applications: Caravans, caravans, boats, mobile homes
• Automotive industry: Charging auxiliary batteries in trucks, buses
• Electromobility: Golf carts, electric bikes, small electric vehicles
• Backup power sources: UPS systems, emergency lighting, telecommunications equipment
• Industry: Handling equipment, measuring instruments, service vehicles
• Outdoor activities: Camping, expeditions, scientific expeditions

Key benefits:
• High efficiency 96%: Minimal energy losses and thermal loads
• Compact design: Space saving when installed in limited space
• Wide temperature range: Reliable operation from -40°C to +55°C
• Rugged IP65 construction: Dust and water protection for harsh environments
• Natural cooling: Quiet operation without fans, lower failure rate
• Intelligent charging: Optimized specifically for lithium batteries
• Flexible connectivity: Various connector types for easy integration
• Long life: MTBF 200,000 hours, 2-year warranty

Input parameters:
Input voltage: 12V, 24V DC (range 10-36V DC)
Maximum input voltage: 40V DC
Low voltage shutdown: 9.5V DC
Low voltage recovery: 10.5V DC
Maximum input current: 43A (at Vin=10.5V, Iout=30A)
Built-in fuse: 60A

Output parameters:
Output voltage: 14.6V DC ±0.2V
Output current: 30A ±3%
Power: 400W
Efficiency: up to 96% (at Vin=12V DC)
Quiescent current: 110mA (at Vin=24V DC)
Battery leakage current: 2mA
Ripple and noise: 220-500mVp-p

Charging characteristics:
Charging mode: CC/CV (constant current/constant voltage)
Anti-backflow function: YES
Float charging: NO (optimal for lithium batteries)
Ignition wire (ACC): optional (10-36V DC ON, 0-8V DC OFF)
LED indication: RED (charging) / GREEN (fully charged)

Safety and reliability:
Protection against overload, overvoltage, overheating, short circuit (all with automatic recovery)
Anti-electric strength: ≥500V (input/output to body)
Insulation resistance: ≥10MΩ (test voltage = 500V)
MTBF: ≥200,000 hours

Construction and environment:
Aluminum construction with fins for natural cooling
Working temperature: -40°C ~ +55°C
Protection: IP65 (waterproof, dustproof, shockproof)
Size: 200×77×30mm (7.87×3.03×1.18 inches)
Weight: ≤1.1kg

Connections and accessories:
Cabling: 45cm length @ 10AWG (input and output)
Available connectors: cables, alligator clips, Anderson Plug, M6/M8/M10 rings
Packaging: box

Certification and warranty:
Certificates: CE, RoHS, ISO9001-2015
Warranty: 2 years
