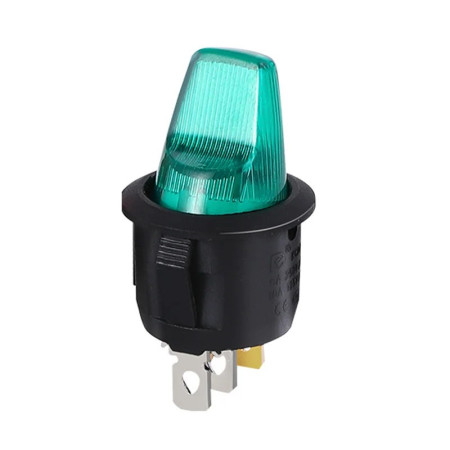

Rocker switch with lever, round with backlight KCD1-5, ON-OFF
zoom_out_map
chevron_left chevron_right

Rocker switch with lever, round with backlight KCD1-5, ON-OFF, 12V

3.20 €

3.20 € Tax excluded

3.20 € without VAT i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Type KCD1
LED backlight
ON-OFF function
Backlight voltage 12V DC
Maximum switching voltage 250V/6A, 125V/10A
Mounting diameter 19mm
Switch diameter 23mm
Size 2.3 cm x 2.3 cm x 3 cm
Protection: IP22

OEM
AM8181-ZE
Current
6 A
Voltage
12 V DC
Connector
Faston 4.8 mm
Waterproof grade
IP22
Number of pins
3-pin

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
